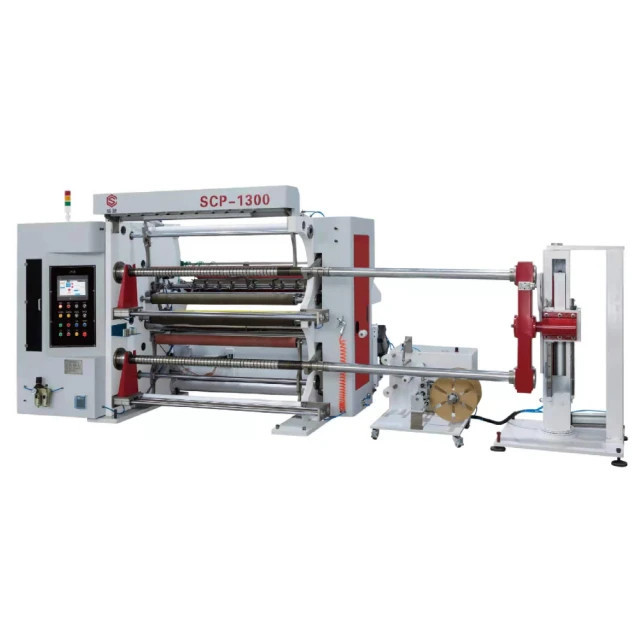

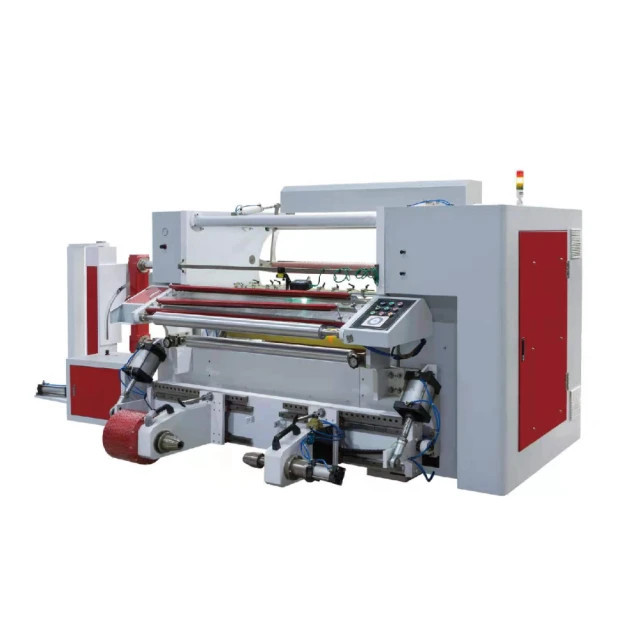

This machine is suitable for PET OPP CPP PE non-woven fabric, PVC and optical material film, paper and various materials.
MaterialCharacteristics：
A. Host part
1. 4 main engines synchronous belt synchronous wheel transmission
2. automatically push materials
3. laser light toposition paper tubes
B. Material UNWIND section
1. The material automatically shaft-less pneumatic uploading
2. adjustable deflection rod device adjustedby a handwheel
3. Magnetic powder brake for unwinding
4. Edge correction device PAUSOURCE brand ( can becustomize BST)
5. one 3 inch shaft for uploading, tranforming device available into 6 inch

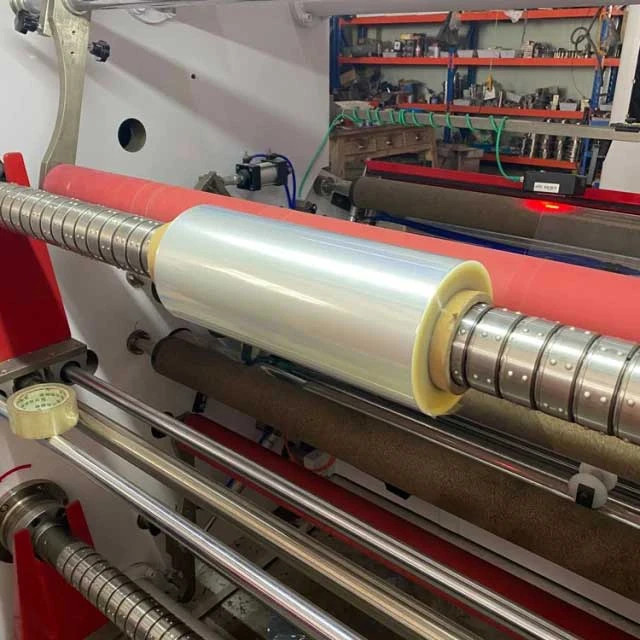

C. Material receiving section
1. Two 3-inch pneumatic slipdifferential receiving shafts
2. Winding tension electrician valve controlled
OPTIONAL
3. Automatic pushing
4. Waste blowing edge trimming winder
5. Rotating sub-frame for unloading
6. Circular or flat knives 10 round knives

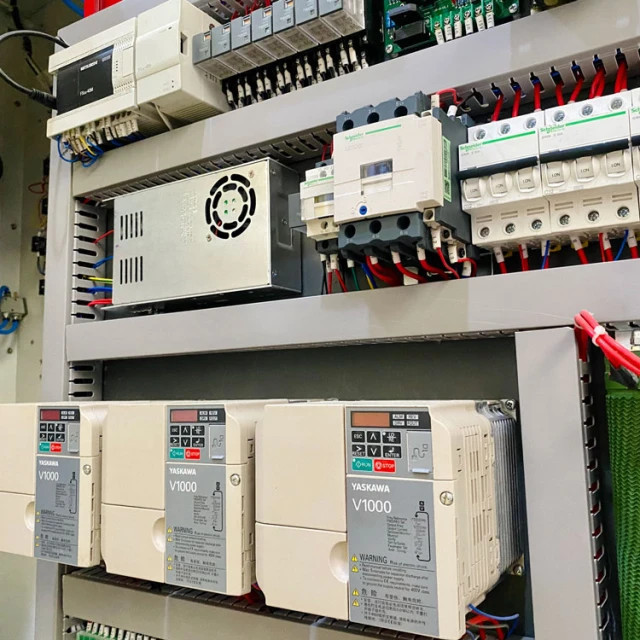

D. Electrical parts
1. Host 1 drives
2. Main motor 1 pcs
3. Winding with 2 drives
4. Main motors, 2 pieces
5. SIEMENS brand PLC uses analog control to drive servo motors
to achieve precise and stable control functions only requires input of raw material thickness, broadband diameter, and speed.
All subsequent tasks are automatically calculated by the computer.
