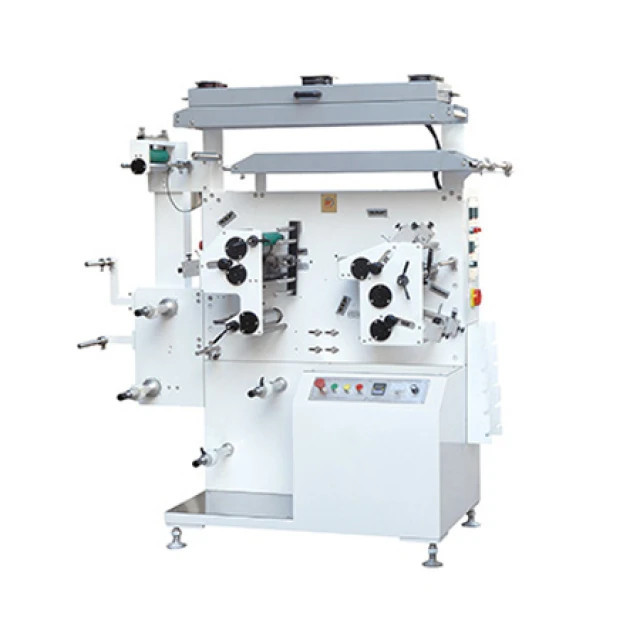

Label Flexo printer 2-8 colors

The printing principle of this machine is to evenly transfer ink to the printing plate drum through high-precision anilox rollers, and then directly press the printing plate drum onto the surface of the belt material. After passing through the drying system, the entire printing process is completed. This machine has dozens of types of printing plate roller specifications that can be arbitrarily converted, thereby changing the printing length, accurate color matching, and a speed of up to 60 meters/minute. Can replace screen printing machines!

Online Inquiry Contact Us

Technical Parameters

Front printing color group	2 colors	3colors	4colors	6colors
Back color group	1colors	1colors	2colors	2colors
Maximum printing length	401mm	401mm	401mm	401mm
Minimum printing length	108mm	108mm	108mm	106mm
Maximum printing width	150mm	150mm	150mm	150mm
Maximum printing speed	60m/min	60m/min	60m/min	60m/min
Discharge/receiving diameter	400mm	400mm	400mm	400mm
Power supply power	220V/5.5kw	220V/5.5kw	220V/5.5kw	220V/5.5kw
Overall weight	560kg	700kg	800kg	950kg
Overall dimensions	17507001820mm	24008001870mm	24008001870mm	24507702150mm
