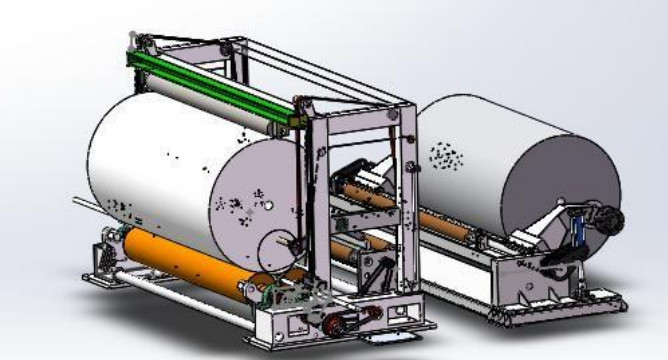

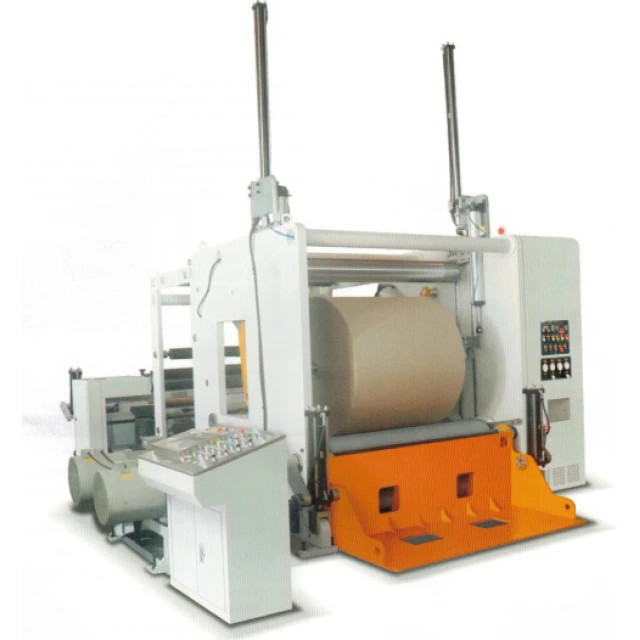

Ground rail type slitter 1800
Host part:
1. The equipment host adopts steel plate material as the center for secondary processing and finalization.
2. The drive spindle is machined from seamless steel pipe, and the surface is hardened by Duluo dynamic balance processing.
3. The feeding guide roller is completed with aluminum alloy guide roller and rubber roller.
4. The main engine is driven by synchronous belt and synchronous wheel.
Discharging part:
1. The discharging mechanism is a shaftless independent discharging rack.
2. Unloading adopts shaftless hydraulic automatic loading , which can effectively save labor , and is convenient and simple.
3. Equipped with a set of deflection adjusting device, which can be adjusted by hand wheel.
4. Unwinding adopts pneumatic brake braking.
5. The edge correction adopts Bat brand to realize the heel line of the material.
Material receiving part:
1. One 3-inch inflatable shaft for the receiving shaft.
2. The locking mode is controlled by manual inflation mode.
3. The cutting knife adopts a round knife to cut 10 round knives.
4. Equipped with a set of waste edge suction device.
5. Unloading adopts hydraulic automatic unloading.
Electrical part:
1. One frequency converter is used for the main engine.
2. 1 main engine motor.
3. LPC uses analog control servo motor to drive.
4. It is only necessary to input the thickness of raw materials, broadband diameter and speed to achieve accurate and stable control function with imported. PLC. The next work is automatically calculated by the computer.
