Product Details

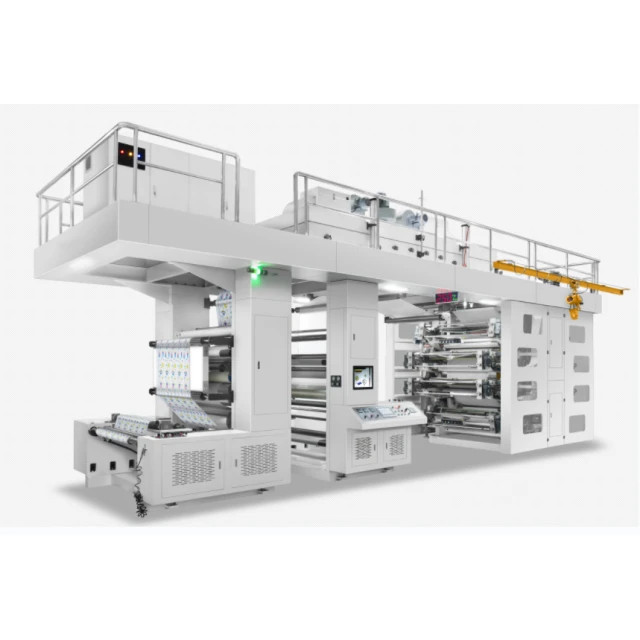

8-color 1200mm CI Flexo Printing Machine including：
1) Chamber doctor blade with auto ink pump* 8pcs
2) Plate roller 40cm *8pcs.
3) Ceramic Anilox Roller (80--1000LPI) * 8pcs
4) EPC (Ultrasonic web guide) *1pcs
5) Air shaft * 2pcs
6) Hydraulic in & out printing roller
7) Auto hydraulic loading&unloading
8) Auto tension control*2sets
9) PLC Video inspection
10) Auto-Lubrication system for central drum
11) Color registration adjusting by motor
12) Motor control ceramic roller and plate roller in and out
13) All aluminum rollers are oxidized
14) Crane
15) Servo main motor , Servo rewind motor，Servo traction motor
16) Water cooling system

Technical Parameters

Model	YTD-81200
Material Feeding Width	1200mm
Max Printing Width	1160mm
Colors	8 colors
Material	PVC.OPP.PE.BOPP.PE.NY.PET.CPP.
Thickness of plate	1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available
Printing length	Standard is 400mm，Customized is available from 400-800mm
Printing speed	250m/min
Register precision	±0.1mm
Gear module	1.5mm
Heating method	Electricity heating
Unwind/rewind paper	core 3＂
Max.unwind/rewind dia.	1000mm
Structure type	Central impression（central drum） Gear drive(china)
Container	40HQ*2
The weight	About 22000kg

Part 4 Drying Unit

Item

Qty

Specification

Top main oven

1SET

1. Air return design, frequency conversion drive, automatic adjustment of air volume and temperature, energy saving and convenient

2. Equipped with an exhaust fan to reduce the concentration of voc produced by printing in the workshop

Color group oven

8SETS

1. The structure adopts the Coanda effect bellows, and at the same time controls the air volume in and out to keep the bellows dry.

2. 2. The bellows adopts a closed design to avoid dry plates.
